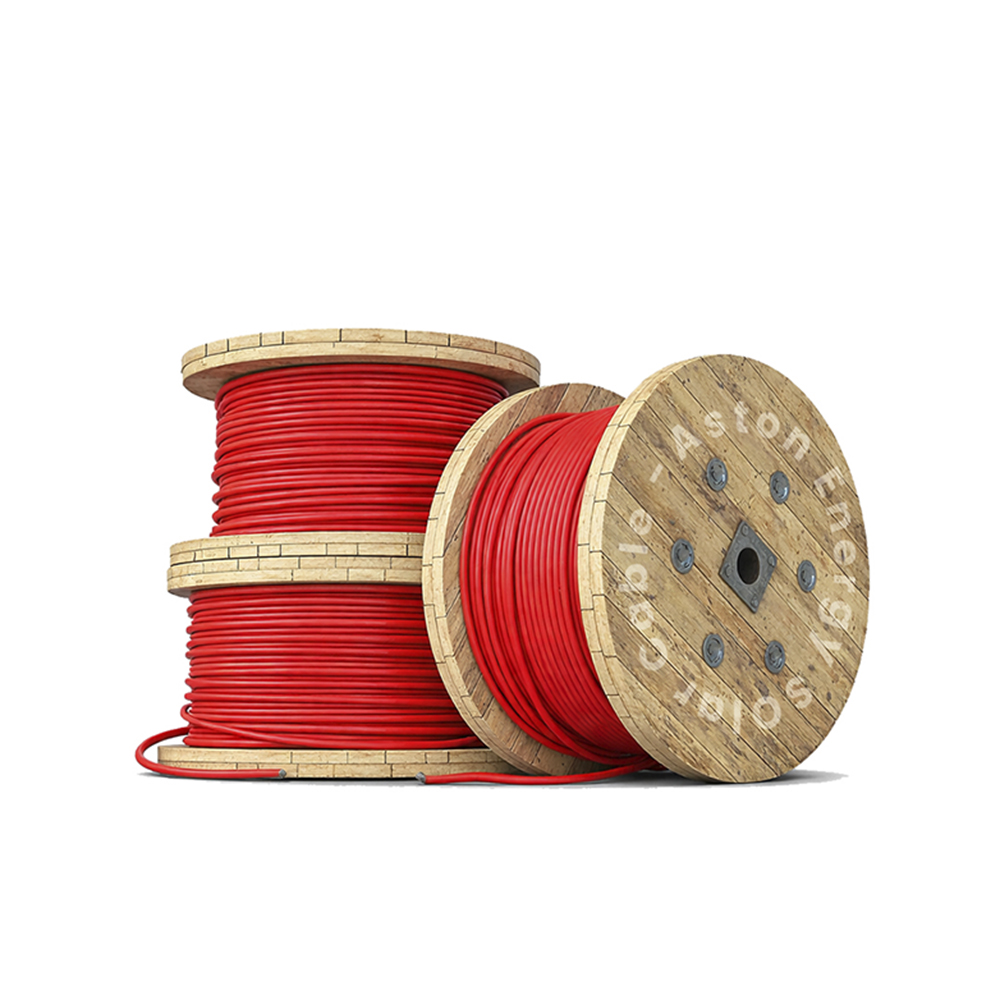

Aston Solar Cable
Product Description
It is designed for the connection of photovoltaic panels and suitable for both fixed and mobile solar installations ,meet
the varying needs of the solar industry
High-performance photovoltaic cable designed for the connection of solar panels in both fixed and mobile installations.
| Technical Data Parameters | Specification Details |
|---|---|
| CONDUCTOR | |
| Material | Electrolytic annealed tinned copper, Class 5 |
| Size | 4mm² |
| Strand Design | 56 * 0.28 ± 0.008mm |
| INSULATION & JACKET | |
| Insulation Material | XLPO (Halogen-free) |
| Jacket Material | XLPO (Anti-Rat / Fire Proof) |
| Overall Diameter | 5.5 ± 0.2mm |
| ELECTRICAL PERFORMANCE | |
| Rated Voltage | 1.0/1.0kV AC | 1.5(1.8)kV DC |
| Test Voltage (AC) | 6.5kV / 5min, 50Hz |
| Conductor Resistance | 5.09 Ω/km at 20°C |
| MECHANICAL & THERMAL | |
| Temperature Range | -40°C to +90°C |
| Max. Short-circuit Temp | 250°C |
| Minimum Bending Radius | 5 × OD (Fixed Installation) |
