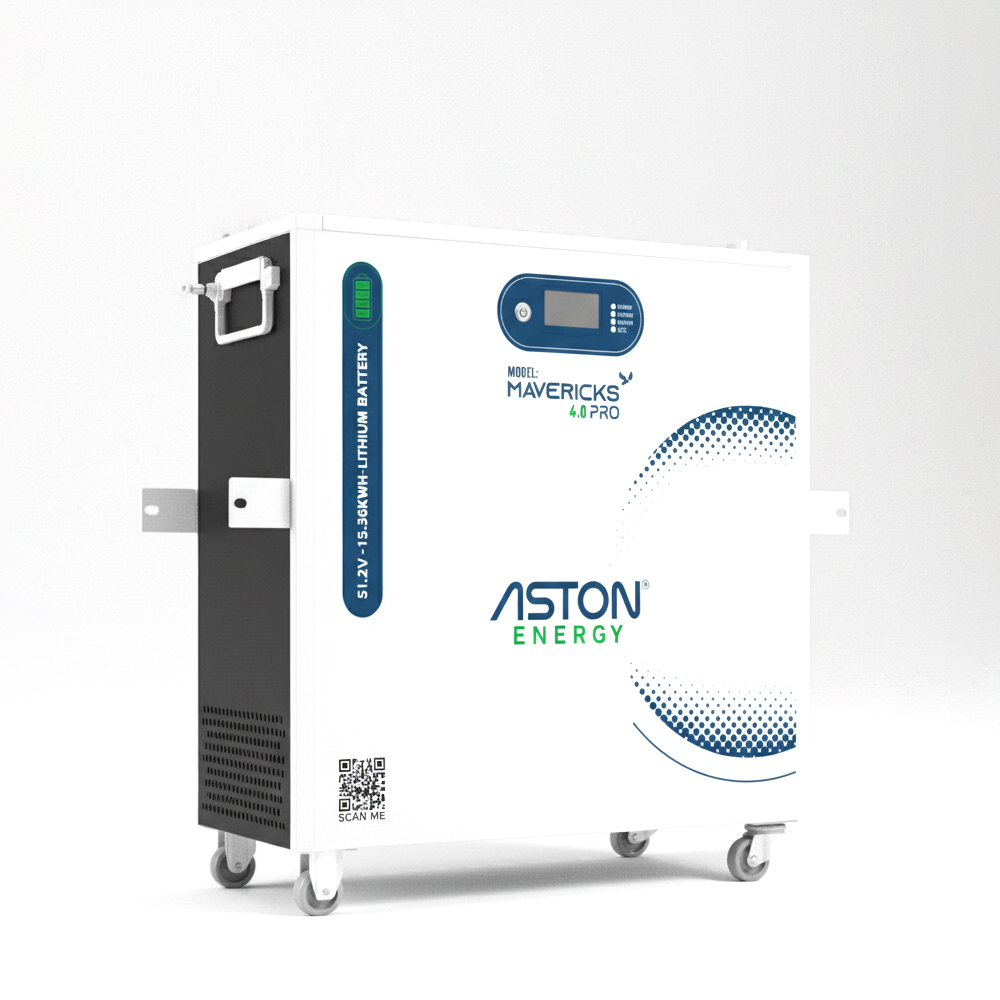

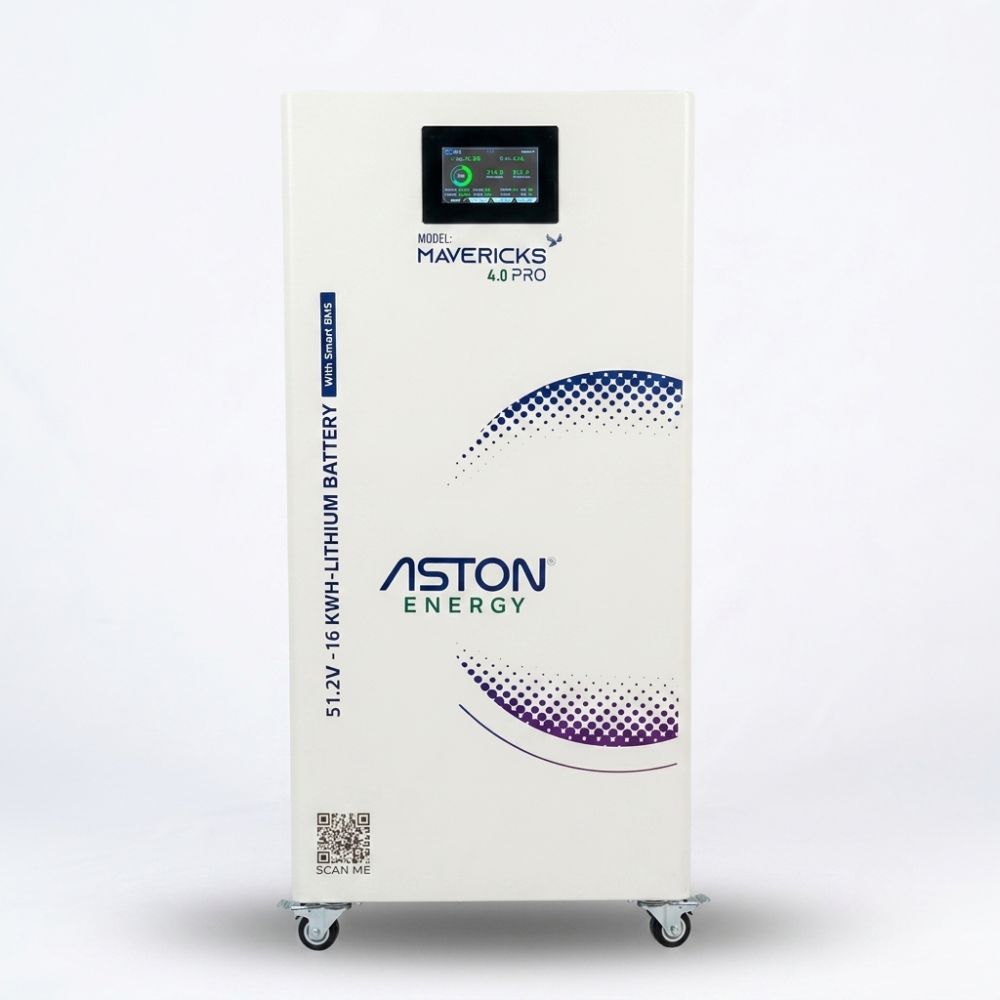

MAVERICKS 4.0 PRO 16 kWh Lithium Battery

MAVERICKS 4.0

Product Description

Download PDF

Product Features

Over Charge Protection

Over Voltage Protection

Over Current Protection

Recycling

Low Self-Discharge

Stable Performance

LITHIUM BATTERY

Technical Specifications:

Model	2.0 PRO - 51.2V 100AH	3.0 PRO - 51.2V 200AH	4.0 PRO - 51.2V 300AH
General Parameters
Nominal voltage	51.2V
Battery voltage range	43.2-57.6V
Nominal capacity	100Ah	200Ah	300Ah
Rated energy	5.12kWh	10.24kWh	15.36kWh
Standard charge/discharge current	0.5C	0.5C	0.5C
Max. charge/discharge current	1C	1C	200A
Communication interface	CAN/RS485
Self-discharge	≤ 3% / month
Protection	Over voltage & Under voltage/Over current/Short-circuit/Over temperature & Under temperature protection etc.
System Parameters
IP rating	IP20
Cooling	Natural
Cycle life	25±2°C, 0.5C/0.5C, EOL80% ≥ 6000
Environment
Working temperature range	Charge: 0°C ~60°C Discharge: -20°C ~60°C
Altitude	0~4000m （Derating over 2000m）

2.0 PRO - 51.2V 100AH

General Parameters

Nominal voltage51.2V

Battery voltage range43.2-57.6V

Nominal capacity100Ah

Rated energy5.12kWh

Standard charge/discharge current0.5C

Max. charge/discharge current1C

Communication interfaceCAN/RS485

Self-discharge≤ 3% / month

Protection Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc.

System Parameters

IP ratingIP20

CoolingNatural

Cycle life25±2°C, 0.5C/0.5C, EOL80% ≥ 6000

Environment

Working temperature rangeCharge: 0°C ~60°C | Discharge: -20°C ~60°C

Altitude0~4000m (Derating over 2000m)

3.0 PRO - 51.2V 200AH

General Parameters

Nominal voltage51.2V

Battery voltage range43.2-57.6V

Nominal capacity200Ah

Rated energy10.24kWh

Standard charge/discharge current0.5C

Max. charge/discharge current1C

Communication interfaceCAN/RS485

Self-discharge≤ 3% / month

Protection Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc.

System Parameters

IP ratingIP20

CoolingNatural

Cycle life25±2°C, 0.5C/0.5C, EOL80% ≥ 6000

Environment

Working temperature rangeCharge: 0°C ~60°C | Discharge: -20°C ~60°C

Altitude0~4000m (Derating over 2000m)

4.0 PRO - 51.2V 300AH

General Parameters

Nominal voltage51.2V

Battery voltage range43.2-57.6V

Nominal capacity300Ah

Rated energy15.36kWh

Standard charge/discharge current0.5C

Max. charge/discharge current200A

Communication interfaceCAN/RS485

Self-discharge≤ 3% / month

Protection Over voltage & Under voltage / Over current / Short-circuit / Over temperature & Under temperature protection etc.

System Parameters

IP ratingIP20

CoolingNatural

Cycle life25±2°C, 0.5C/0.5C, EOL80% ≥ 6000

Environment

Working temperature rangeCharge: 0°C ~60°C | Discharge: -20°C ~60°C

Altitude0~4000m (Derating over 2000m)
