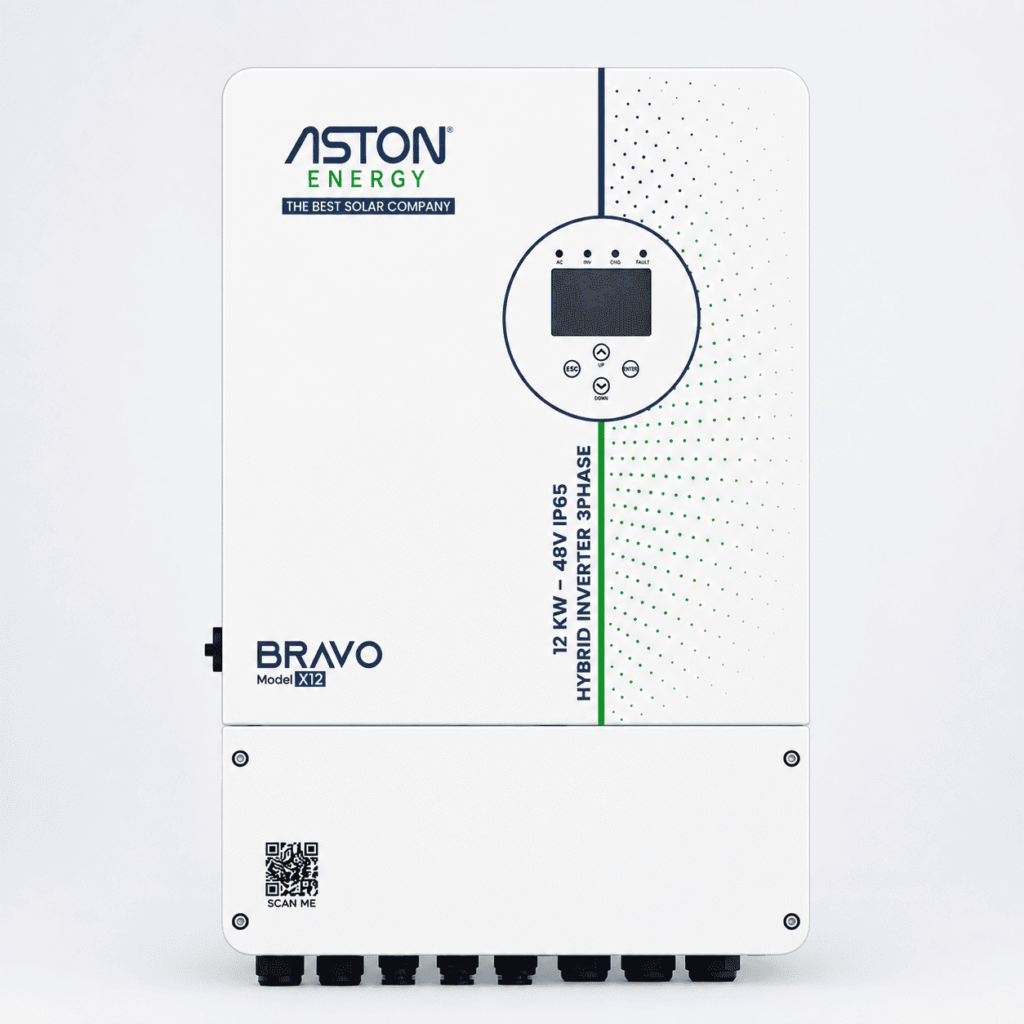

Bravo X12 12KW 3 Phase Hybrid Inverter

Bravo X12

Product Description

IP65 certified enclosure
12kW, 48V three-phase hybrid inverter
Max. PV input power up to 19,200W with 2 built-in MPPT trackers (2+1 strings)
Wide MPPT voltage range of 200-650V
240A max charge and discharge current, compatible with Lead-acid and Li-ion batteries
Compatible with diesel generators and AC coupling to retrofit existing solar systems
Maximum conversion efficiency of 97.6% and MPPT efficiency above 99.99%
Colored LCD touchscreen for intuitive setup and real-time monitoring
Built-in communication ports (RS485/CAN) with WiFi/Bluetooth monitoring

Download PDF

BRAVO HYBRID INVERTER

Product Features

12kW three-phase hybrid inverter with smart control, strong protection, and high efficiency for modern solar systems.

MPPT X2

Dual MPPT

Built-in 2 MPPT trackers (2+1 strings) with a wide 200-650V voltage range and up to 19,200W PV input.

PROTECTION IP65

IP65 Rated

Dust-tight and water-resistant enclosure designed for durable and secure operation in demanding environments.

DISPLAY LCD

Colored LCD Touchscreen

Intuitive setup and real-time monitoring, with WiFi/Bluetooth monitoring and 4ms backup power switching.

PARALLEL 16x

16 Units in Parallel

Up to 16 units in parallel for on-grid and off-grid operation, with 100% three-phase unbalanced output.

Bravo X12 Technical Specifications

Detailed technical data for battery, PV input, AC output, efficiency, protection, interface, and general specifications.

Model	BRAVO X12
Battery input data
Battery Type	Lead-acid / Li-ion
Battery Voltage Range (V)	40 - 60
Max. Charging Current (A)	240
Max. Discharging Current (A)	240
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV string input data
Max. PV Input Power (W)	19200
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	150
MPPT Voltage Range (V)	200 - 650
Max. Operating PV Input Current (A)	26 + 16
Max. Input Short-Circuit Current (A)	34 + 20
No. of MPP Trackers / No. of Strings per MPP Tracker	2 / 2+1
AC input / output data
Rated AC Input/Output Active Power (W)	12000
Max. AC Input/Output Apparent Power (VA)	13200
Rated AC Input/Output Current (A)	18.2 / 17.4
Max. AC Input/Output Current (A)	20 / 19.1
Peak Power (off-grid)	2 times of rated power
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage / Range (V)	220/380, 230/400, 0.85Un - 1.1Un
Rated Input/Output Grid Frequency / Range (Hz)	50 / 45-55, 60 / 55-65
Grid Connection Form	3L + N + PE
Total Current Harmonic Distortion THDi	< 2% (of nominal power)
DC Injection Current	0.5% In
Efficiency
Max. Efficiency	97.57%
Euro Efficiency	96.85%
MPPT Efficiency	> 99.99%
Equipment protection
Integrated Protections	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection
Surge Protection Level	TYPE II (DC), TYPE II (AC)
Interface
Communication Interface	RS485 / CAN
Monitor Mode	WiFi / Bluetooth
General data
Operating Temperature Range (°C)	-40 to +60
Permissible Ambient Humidity	0 - 100%
Permissible Altitude (m)	2000
Ingress Protection (IP) Rating	IP65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II (DC), OVC III (AC)
Cabinet Size (W x H x D mm)	450 x 677 x 255
Weight (kg)	36.2
Type of Cooling	Intelligent Air Cooling
Warranty	5 Years
Grid Regulation	Ordinance No.140 / Ordinance No.515
Safety / EMC Standard	IEC/EN 61000-6-1:2019, IEC/EN 61000-6-3:2021, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, IEC 63027:2023

Product specifications are subject to change without further notice.
